This dome IP network security camera offers 1.3 megapixel Aptina image sensor capable of high definition 720P resolutions. This LED unit is great for indoor locations that require night vision. It offers power over Ethernet and dome styling for a very versitile installation for residential and commercial locations.

• Features
• Specifications

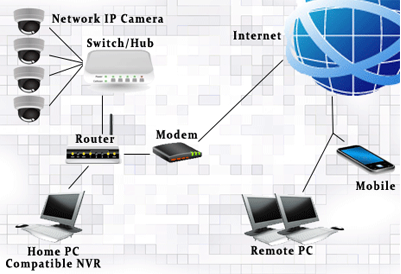

• Diagram
• Contents

- 1/3” 1.3Megapixel progressive scan Aptina CMOS
- H.264 & MJPEG dual-stream encoding
- Max 15fps@1.3M(1280×960)&25/30fps@720P(1280×720)
- Day/Night(ICR), 2DNR, AWB, AGC, BLC
- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
- 3.6mm fixed lens
- Max. IR LEDs Length 20m


Model		IPC-HDW2100
Camera
Image Sensor		1/3” 1.3Megapixel Aptina CMOS
Effective Pixels		1280(H)x960(V)
Scanning System		Progressive
Electronic Shutter Speed		Auto/Manual 1/3~1/10000
Min. Illumination		Color: 0. 1LUX/F1.4, B/W: 0.005LUX/F1.4,0Lux (IR on)
S/N Ratio		>50dB
Camera Features
Max. IR LEDs Length		20m
Day/Night		Auto(ICR) / Color / B/W
Backlight Compensation		BLC
White Balance		Auto
Gain Control		Auto/Manual
Noise Reduction		2D
Privacy Masking		Up to 4 areas
Lens
Focal Length		3.6mm
Max Aperture		F1.8
Angle of View		H: 70°
Mount Type		Board-in Type
Video
Compression		H.264 / MJPEG
Resolution		1.3M(1280×960) / 720P(1280×720) / D1(704×576) / CIF(352×288)
Frame Rate	Main Stream	1.3M(1~15fps)/720P(1 ~ 25/30fps)
	Sub Stream	D1/CIF(1 ~ 25/30fps)
Bit Rate		H.264: 32K ~ 8192Kbps, MJPEG: 32K ~ 12288Kbps
Network
Ethernet		RJ-45 (10/100Base-T)
Protocol		IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIF		ONVIF Ver. 2.0
Max. User Access		10 users
Smart Phone		iPhone, iPad, Android, Windows Phone
General
Power Supply		DC12V, PoE (802.3af)
Power Consumption		<4W
Working Environment		-10°C~+60°C, 10%~90%
Dimensions		Φ114 x 86
Weight		288g





• 1x IP Camera
• 1x User's Manual
